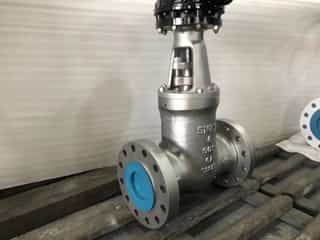

Wedge Gate Valve

Size:3" to 40"
Persure:150LB~2500LB
Temperature Range:‐196°C to 500°C

Welcome to this in-depth exploration of the wedge gate valve, an essential component in various industrial applications. This article aims to provide you with a thorough understanding of the wedge gate valve's structure, industrial applications, usage instructions, failure analysis, and address some frequently asked questions. By the end, you'll have gained valuable insights into this crucial piece of equipment.

Structure of the Wedge Gate Valve

The wedge gate valve is a type of shut-off valve that utilizes a wedge-shaped disc to control the flow of fluids. Its design allows for precise control and excellent sealing properties, making it suitable for a wide range of industrial uses. Let's take a closer look at its structure.

Main Components

The wedge gate valve consists of several key components:

  1. Body: The valve body is typically made of metal, such as cast iron, carbon steel, or stainless steel. It provides structural support and contains the fluid during operation.
  2. Disc: The disc, shaped like a wedge, is the primary element responsible for controlling the flow. It is mounted on a stem and can move up or down to open or close the valve.
  3. Stem: The stem connects the disc to the valve operator, allowing for manual or automatic control of the valve.
  4. Seat: The seat is located at the bottom of the valve body and provides a sealing surface for the disc. It ensures tight shutoff and prevents leaks.
  5. Bonnet: The bonnet is the cover that encloses the valve stem and internal components, protecting them from external elements.
  6. Operator: The operator can be manual (handwheel, lever, or pedal) or automatic (pneumatic, electric, or hydraulic). It controls the stem's movement, which in turn operates the disc.

Operation Principle

The wedge gate valve operates by sliding the disc along the seat. When the valve is closed, the disc wedges tightly against the seat, preventing fluid flow. When the valve is opened, the disc moves away from the seat, allowing the fluid to pass through.

Industrial Applications

The wedge gate valve finds extensive use in various industries due to its reliability, durability, and excellent sealing properties. Here are some common applications:

Petroleum and Gas Industry

In the petroleum and gas industry, wedge gate valves are used for controlling the flow of crude oil, natural gas, and various petrochemicals. Their robust construction and ability to handle high temperatures and pressures make them ideal for these demanding environments.

Water and Wastewater Treatment

Wedge gate valves are widely employed in water treatment plants, sewage systems, and irrigation networks. They provide efficient control over water flow and can withstand the abrasive nature of water, ensuring long-lasting performance.

Chemical and Process Industries

The chemical and process industries require precise control over fluid flow, and wedge gate valves deliver. They are used in applications involving acids, bases, solvents, and other aggressive media.

Power Generation

In power plants, wedge gate valves are used for controlling the flow of steam, water, and other fluids. Their reliable operation helps maintain the efficiency and safety of the power generation process.

Case Study: Wedge Gate Valve Application

One notable application of the wedge gate valve is in a large-scale oil refinery. The refinery required a valve that could withstand extreme temperatures, pressures, and corrosive fluids. After thorough research and evaluation, the wedge gate valve was chosen for its excellent sealing properties and durability.

The installation of the wedge gate valve significantly improved the refinery's operational efficiency. It provided tight shutoff, preventing any backflow or leaks. Moreover, its reliability reduced maintenance costs and minimized downtime.

Usage Instructions and Failure Analysis

To ensure optimal performance and longevity of wedge gate valves, proper usage instructions should be followed. Additionally, understanding common failure modes can help in preventing issues and extending the valve's lifespan.

Usage Instructions

  1. Installation: Ensure proper alignment and support for the valve according to the manufacturer's specifications.
  2. Operation: Operate the valve within its specified pressure and temperature limits. Avoid rapid or excessive opening and closing to prevent damage.
  3. Maintenance: Regularly inspect the valve for wear, corrosion, or damage. Replace worn-out parts promptly and perform routine maintenance as recommended by the manufacturer.

Failure Analysis

  1. Leakage: Leaks can occur due to worn-out seats, damaged seals, or improper installation. Regular inspection and maintenance can prevent this issue.
  2. Sticking: If the valve stem or disc sticks, it may be due to lack of lubrication, foreign particles, or corrosion. Proper lubrication and regular cleaning can help avoid this problem.
  3. Damage from High Pressure or Temperature: Operating the valve beyond its specified limits can lead to structural damage. Always adhere to the manufacturer's guidelines.

Conclusion

The wedge gate valve is a versatile and reliable component used in various industrial applications. Its unique design, robust construction, and excellent sealing properties make it an indispensable
