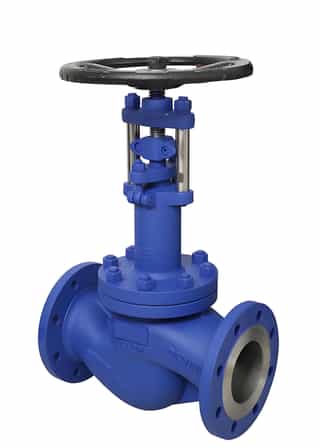

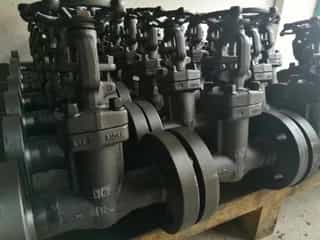

Bellows Seal Globe Valves

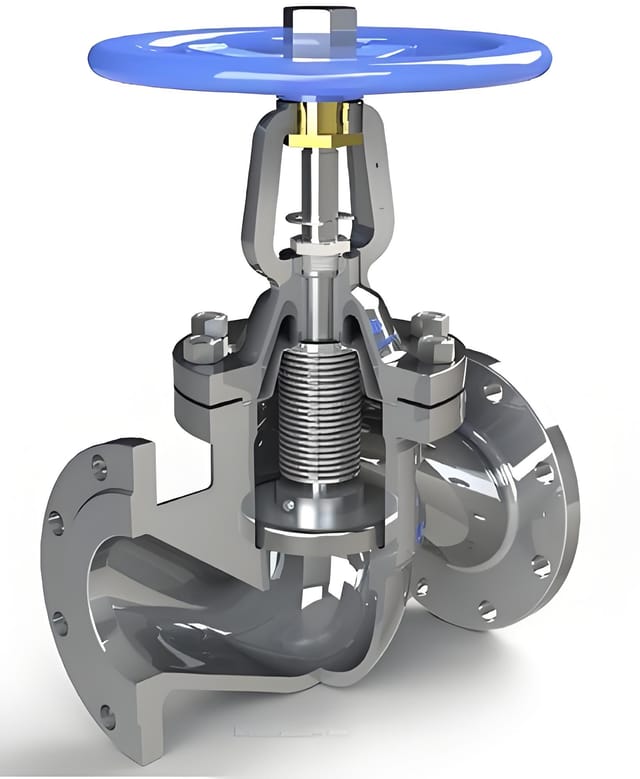

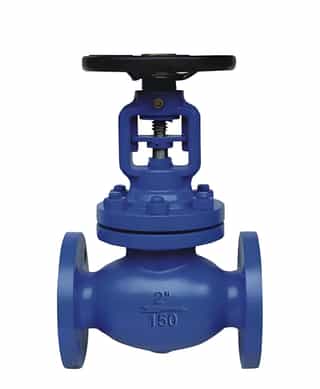

Structure of Bellows Seal Globe Valves

In the demanding world of industrial fluid control, achieving a truly reliable and leak-proof seal is paramount. Enter the bellows seal globe valve. This special valve design improves sealing performance. It ensures process integrity and efficiency in many applications.

Understanding the Heart of the Matter: The Bellows Seal

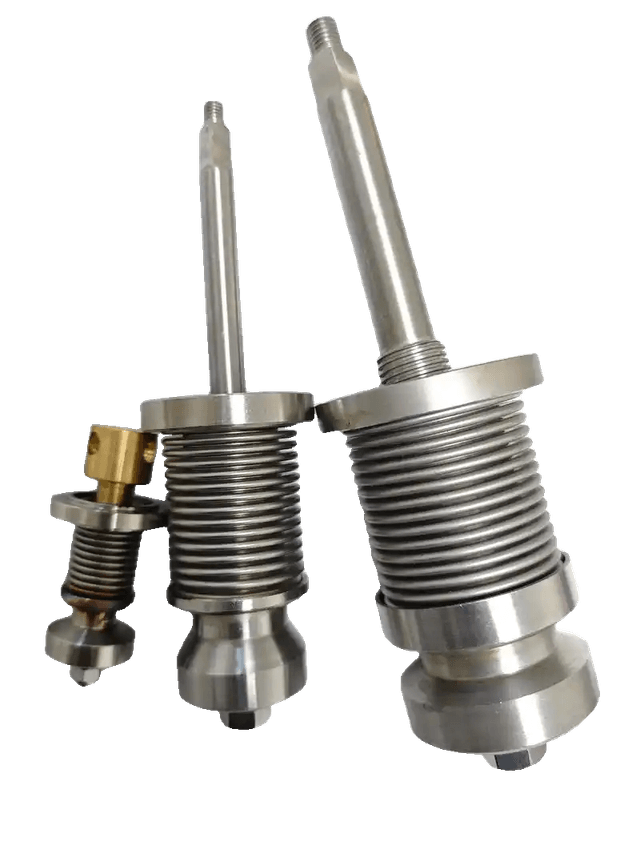

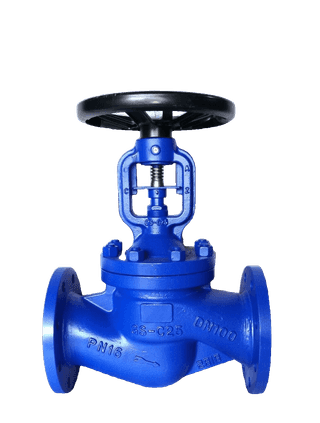

At the core of every bellows seal globe valve lies a sophisticated marvel of engineering – the bellows itself. Manufacturers usually create this complex setup of flexible metal layers from austenitic stainless steel or high-nickel alloys. It acts as a moving seal between the valve stem and the valve body.

Here's how it works:

• Movement Accommodation: When the valve opens or closes, the bellows flexes and shapes to the stem's movements. This prevents direct contact with the surrounding process fluid.
• Pressure-Tight Barrier: The tightly wound, multi-layered design of the bellows forms a strong barrier against pressurized fluids. This setup stops leaks and ensures a complete seal.
• Great Temperature and Pressure Resistance: Depending on the material you choose, bellows seals can handle extreme temperatures and pressures. This makes them ideal for tough industrial settings.

Why Choose a Bellows Seal Globe Valve?

Globe valves, with their robust design and ability to precisely control flow, are already renowned for their reliability. However, a bellows seal takes this performance to a whole new level:

1. Zero Leakage: The special design of the bellows almost completely prevents leakage. This is true even in tough process conditions.
2. Exceptional Operational Efficiency: The precision sealing capabilities of bellows seal globe valves contribute to minimized energy consumption and reduced operational costs.
3. Reduced Maintenance: The absence of traditional packing glands and their associated maintenance requirements translates into significant downtime savings.
4. Enhanced Safety: In hazardous environments, the elimination of leakage points significantly minimizes the risk of spills and potential explosions.
5. Vibration Resistance: Bellows seals naturally dampen vibrations. This reduces how much vibrations travel through the valve. It also lowers the chance of damage or malfunction.

Applications where Bellows Seal Globe Valves Excel:

• Chemical Processing: Pharmaceuticals, high purity chemicals, and corrosive media benefit from the absolute sealing integrity provided by these valves.

• Nuclear Power plants use bellows seal globe valves to maintain critical safety levels in high-pressure and radioactive environments.

• Semiconductor Manufacturing: Ultra-pure water and stringent cleanliness requirements make bellows seal globe valves ideal for delicate semiconductor processing.

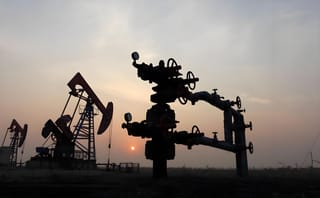

• Oil & Gas: Controlling high-pressure and high-temperature wellhead flows or handling corrosive liquids, bellows seals offer reliable performance.

• Aerospace: In sensitive aerospace applications, bellows seal globe valves contribute to leak-free cabin environments and fuel systems.

Selecting the Right Bellows Seal Globe Valve:

When choosing a bellows seal globe valve, you must think about its many uses and tough working conditions.

1. Material Selection:
   • Austenitic stainless steel provides excellent corrosion resistance and is suitable for general applications.
   • Nickel-based alloys like Hastelloy C276 and Inconel 625 are resistant to highly corrosive media and high temperatures.
2. Size and Flow Rate: Choose a valve size that accurately matches the expected flow rate and pressure drop requirements.
3. Operating Temperature and Pressure: Select materials and design features that can withstand the maximum anticipated temperature and pressure within the process.
4. Cycle Life: For frequent on/off cycles, choose a bellows with a higher cycle life rating. This will ensure long-term reliability.

FAQs

1. What is the difference between a bellows seal globe valve and a traditional globe valve?
   • A traditional globe valve uses packing glands to seal the valve stem, while a bellows seal globe valve uses a flexible metal bellows for sealing. Bellows seals offer superior leak prevention, reduced maintenance, and enhanced temperature and pressure resistance.
2. How often should bellows seal globe valves be inspected and maintained?
   • Regular inspection schedules should be established based on operating conditions and manufacturer recommendations. Typically, this involves visual inspections, checking for signs of wear, and ensuring proper lubrication of moving parts.
3. Can bellows seal globe valves be used in vacuum applications?
   • Yes, bellows seal globe valves, with their vacuum-tight design, are suitable for applications involving vacuum conditions. The choice of material and design will depend on the specific vacuum level required.
4. How do I know if my bellows seal globe valve needs replacement?
   • Signs of a damaged or worn bellows seal include: gradual leakage, valve stem sticking or binding, excessive force required to operate the valve, or hissing sounds emanating from the valve.
5. What is the environmental impact of using bellows seal globe valves?
   • Bellows seal globe valves contribute to environmental protection through:
   • Leakage Prevention: Minimizing emissions and spills of hazardous materials.
   • Energy Efficiency: Precise flow control reduces energy consumption.
