Design and Quality Control of High-Pressure Hydrogen Service Valves

18 min read

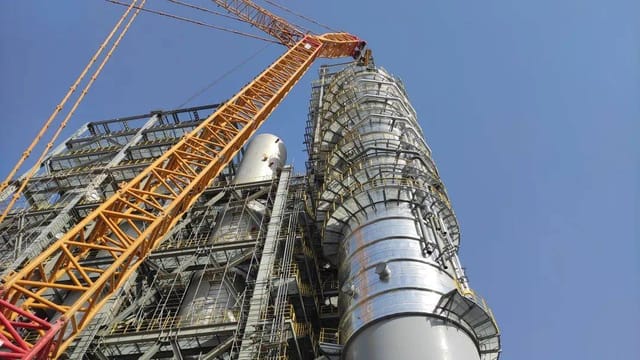

Hydrotreater

Understanding Hydrogen Sulfide Corrosion in Industrial Valves

In modern oil refineries, processing high-sulfur crude oil presents significant challenges for equipment integrity. Let's explore how different conditions affect corrosion:

Temperature-Dependent Corrosion Mechanisms

  • Low Temperature Zone (≤120°C)
    • With water present, forms HCl-H2S-H2O corrosive mixture
    • Can trigger stress corrosion cracking in steel components
    • Requires special material consideration and monitoring
  • Moderate Temperature Zone (120-240°C)
    • Dry conditions show minimal corrosion effects
    • Equipment maintains structural integrity
    • Regular inspection still recommended
  • High Temperature Zone (≥240°C)
    • Sulfide compounds begin breaking down
    • Accelerated H2S corrosion occurs
    • Rapid uniform corrosion of steel surfaces

Special Considerations for High-Pressure Systems

High-pressure hydrogenation systems face multiple challenges:

  1. Elevated operating pressures
  2. Small hydrogen molecules prone to leakage
  3. Highly flammable and explosive conditions
  4. Corrosive environment affecting material integrity

Comprehensive Design Standards

International Standards Implementation

Valve design and manufacturing must comply with these key standards:

  1. API Standards
    • API 6D: Specification for Valves
    • API 600: Steel Gate Valves - Flanged and Butt-welding Ends, Bolted Bonnets
    • Focuses on petroleum and natural gas industry applications
  2. ASME Standards
    • B16.34: Valves--Flanged, Threaded, and Welding End
    • B16.10: Face-to-Face and End-to End Dimensions of Valves
    • B16.5: Pipe Flanges and Flanged Fittings: NPS 1/2 through NPS 24, Metric/Inch Standard
    • B16.25: Buttwelding Ends
    • B16.11: Forged Fittings, Socket-Welding and Threaded

Essential Structural Requirements

Size-Specific Design Criteria

  1. Small Diameter Valves (DN≤40mm)
    • Rigid wedge single gate design
    • Bolted bonnet (BB) construction mandatory
    • Enhanced sealing capabilities
  2. Larger Valves (DN≥50mm)
    • Flexible wedge gate design
    • Improved operational reliability
    • Special attention to thermal expansion

Construction Requirements

  1. Welding Connections
    • Must follow ASME B16.25 specifications
    • Figure 5B or 6B end preparations
    • Enhanced welding quality control
  2. Corrosion Allowances
    • Carbon and Cr-Mo steels: Minimum 3mm
    • Stainless steels: Minimum 1.5mm
    • Regular thickness monitoring points

Advanced Material Selection

Body Material Requirements

Steel Grade Selection Criteria

  1. Hydrogen Resistance Improvement Methods
    • Reduced carbon content approach
    • Alloying element addition strategy
    • Balanced composition for optimal performance
  2. Preferred Material Types
    • Mo steels for moderate service
    • Cr-Mo steels for enhanced performance
    • Austenitic stainless steels for superior resistance

Stabilized Stainless Steel Advantages

  1. Enhanced Properties
    • Better high-temperature stability
    • Improved corrosion resistance
    • Superior hydrogen embrittlement resistance
  2. Specific Grades
    • CF8C: General high-pressure service
    • F321: Ti-stabilized grade
    • F347: Nb-stabilized option

Rigorous Quality Control Procedures

Cast Steel Component Requirements

  1. Foundry Process Control
    • Controlled solidification patterns
    • Furan resin sand mold requirement
    • Proper feeding and gating design
  2. Material Processing
    • Electric arc furnace melting
    • Secondary refining requirements
    • Strict chemical composition control
  3. Testing and Inspection
    • 100% radiographic examination
    • Comprehensive mechanical testing
    • Microstructure evaluation

Forged Component Standards

  1. Material Verification
    • Pre-processing chemical analysis
    • Mechanical property validation
    • Documentation requirements
  2. Heat Treatment Protocols
    • Carbon steel normalization
    • Cr-Mo steel tempering requirements
    • Stainless steel solution treatment
  3. Quality Inspection
    • Ultrasonic testing (UT)
    • Dye penetrant inspection (PT)
    • No weld repairs permitted

Advanced Sealing Technologies

Packing System Design

  1. Material Selection
    • Graphite composite materials
    • Stainless steel reinforcement
    • Anti-extrusion components
  2. Installation Requirements
    • Precise compression settings
    • Proper preload application
    • Regular maintenance protocols

Metal-to-Metal Sealing

  1. Small Diameter Applications
    • Special alloy sealing rings
    • Surface finish requirements
    • Installation procedures
  2. Maintenance Considerations
    • Inspection intervals
    • Replacement criteria
    • Performance monitoring

FAQs

  1. What makes hydrogen service particularly challenging for valve design?
    • Hydrogen service combines multiple challenges: high pressure, small molecule size leading to leakage risks, material embrittlement concerns, and corrosive environments. These factors require specialized design considerations and material selection.
  2. Why is temperature control crucial in hydrogen sulfide environments?
    • Temperature significantly affects corrosion mechanisms. Above 240°C, sulfide decomposition accelerates corrosion, while below 120°C with water present, stress corrosion cracking becomes a concern.
  3. What are the advantages of stabilized stainless steels in valve construction?
    • Stabilized stainless steels contain Ti or Nb additions that form stable carbides, reducing carbon's negative effect on hydrogen resistance. This results in better high-temperature performance and improved corrosion resistance.
  4. How often should high-pressure hydrogen service valves be inspected?
    • Regular inspection intervals, which vary depending on service conditions, typically involve monthly external visual inspections, annual seat leakage testing, radiographic examinations every 2-3 years, and a complete overhaul every 5 years or as required.
  5. What are the critical factors in selecting valve packing materials?
    • Key considerations when selecting a valve sealing solution include chemical compatibility with the process fluid, temperature resistance capabilities, compression set characteristics, hydrogen permeation resistance, and long-term sealing performance.
